Universal, multifunction car AM/FM/DAB/DAB+/GNSS antenna Shark II. 7677810
Universal, multifunction car AM/FM/DAB/DAB+/GNSS antenna Shark II. 7677810
DAB antennas

Universal, multifunction car AM/FM/DAB/DAB+/GNSS antenna Shark II. 7677810

(0 customer reviews)
Calearo

SKU: 13289-1

Multifunction antenna Shark II with AM/FM/DAB/DAB+/GNSS (GPS/GLONASS) functions.
Available for order
€149.00
Add to cart
Wishlist
Compare
Multifunction antenna with AM/FM/DAB/DAB+/GNSS (GPS/GLONASS) functions.
7677810, Calearo.

Installation:
installation point: roof rear, drill hole round: 19mm., drill hole square: 15 x 15 mm., tightning torque: 6,5 nm +/- 20%
Dimensions:
antenna socket: L = 117 mm / W = 76 mm / H = 62 mm.

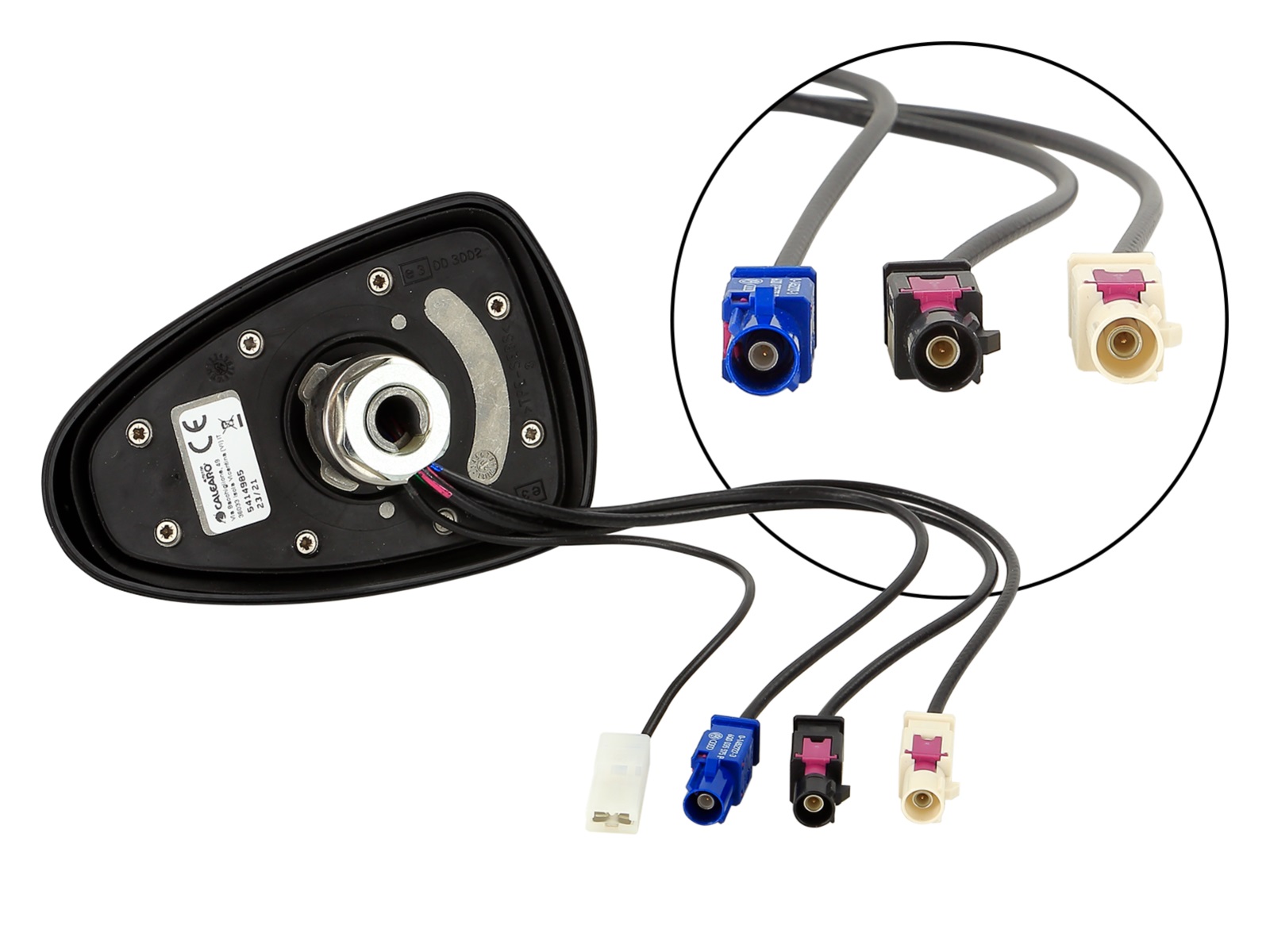

Connections:
AM/FM: Fakra B(m) white RG175 / L=250 mm.
DAB/DAB+: Fakra A(m) black RG175/ L=250 mm.
GNSS: Fakra C(m) blue RG175 / L=250 mm.
power supply external: blade terminal 6,3 mm.
Frequency range:
AM: 150 kHz - 1710 kHz
FM:  87,5 MHz - 108 MHz
DAB/DAB+: 174 MHz - 240 MHz
GNSS: 1559 MHz - 1065 MHz
Benefit (dB): DAB/DAB+: 2dBi, GNSS: 28dBi
Power supply:
AM/FM: 12V external / 12V phantom power
DAB/DAB+: 12V external / 12V phantom power
GNSS: 3V - 5V phantom power
Power consumption:
AM/FM: 80 mA max
DAB/DAB+: 33 mA max
GNSS: 31 mA max
Impedance: AM/FM: 50 Ohm., DAB/DAB+: 50 Ohm., GNSS: 50 Ohm.
VSWR: DAB/DAB+: <3:1, GNSS: 1,7:1
Noise figure: FM: 3,5 db., DAB/DAB+: 2 db., GNSS: 1,4 db.
Polarization: FM: Vertical, DAB/DAB+: Vertical, GNSS: RHCP.
Brand Calearo
Weight 400g
By antenna type DAB antennas
By car brand Universal (All brand)
